Steel Ops plate - Shot at 25 yards

General
1

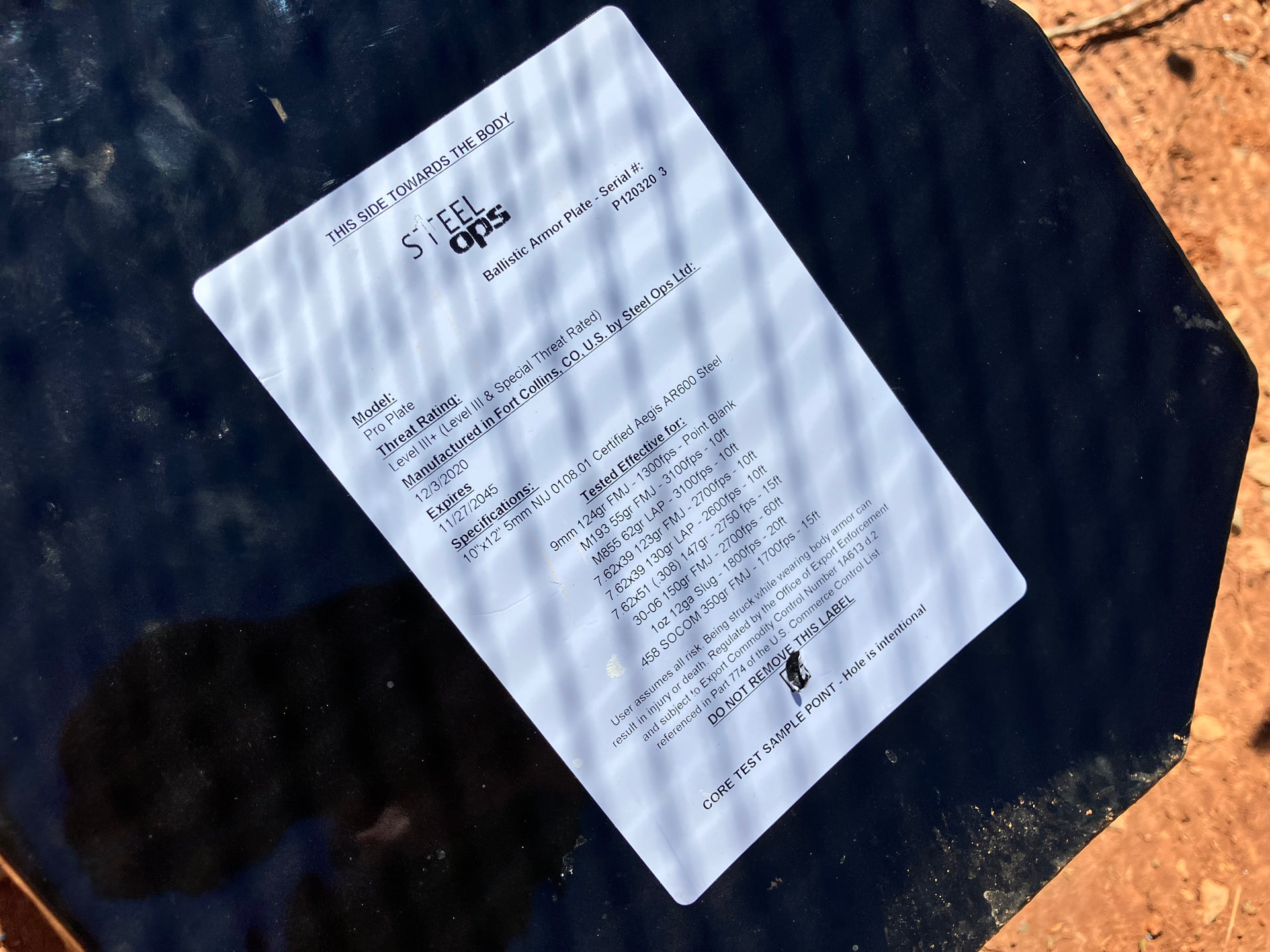

I had this extra since 2020.

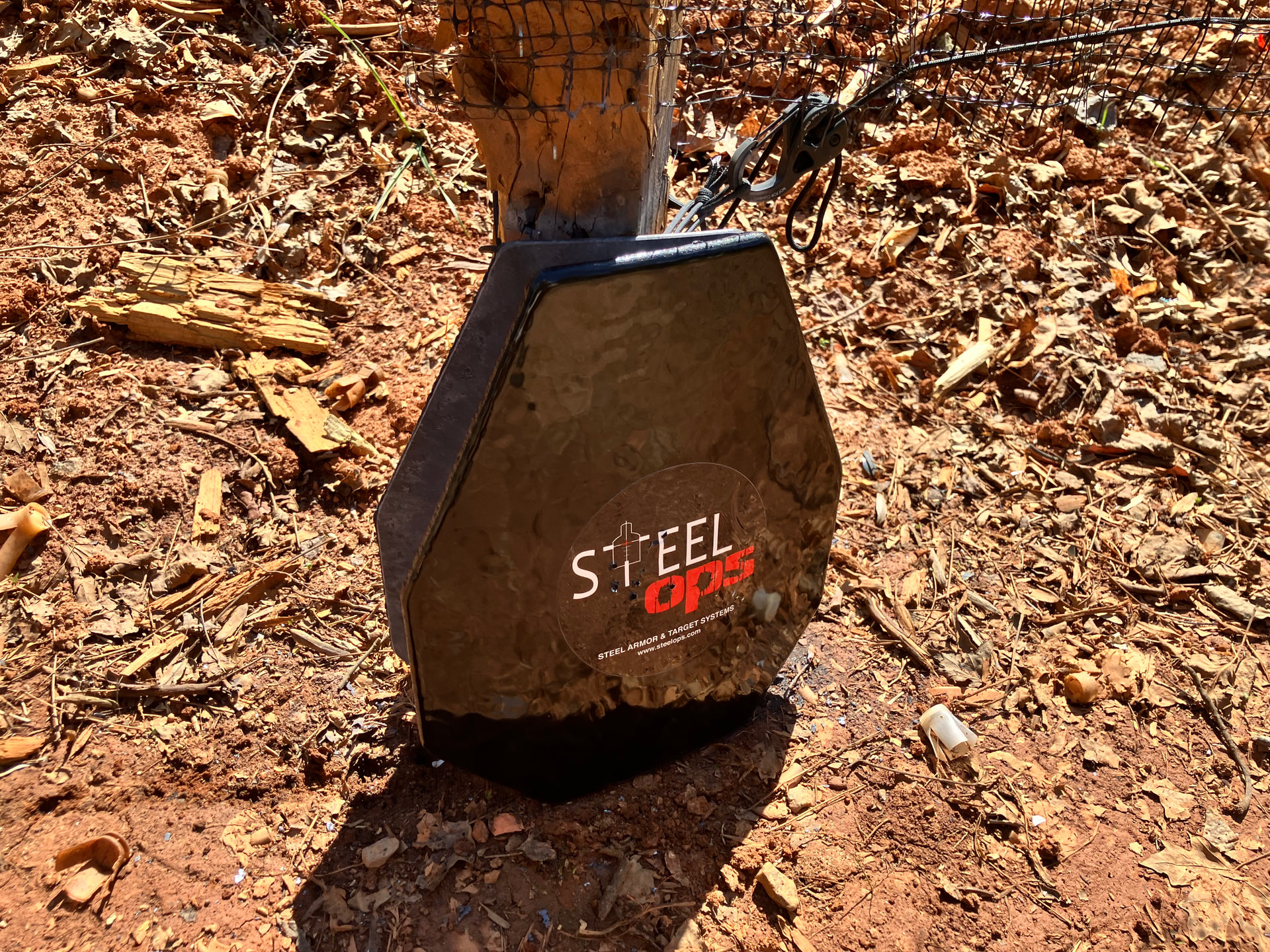

Last week, I leaned it up against a post at the 25 yard berm.

Barrel length: 16”

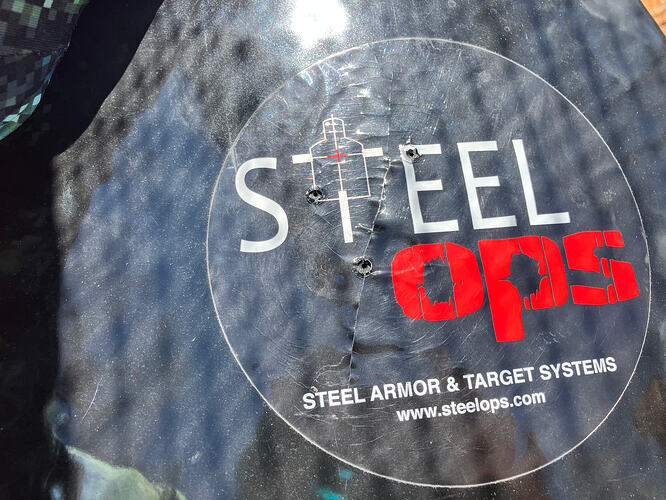

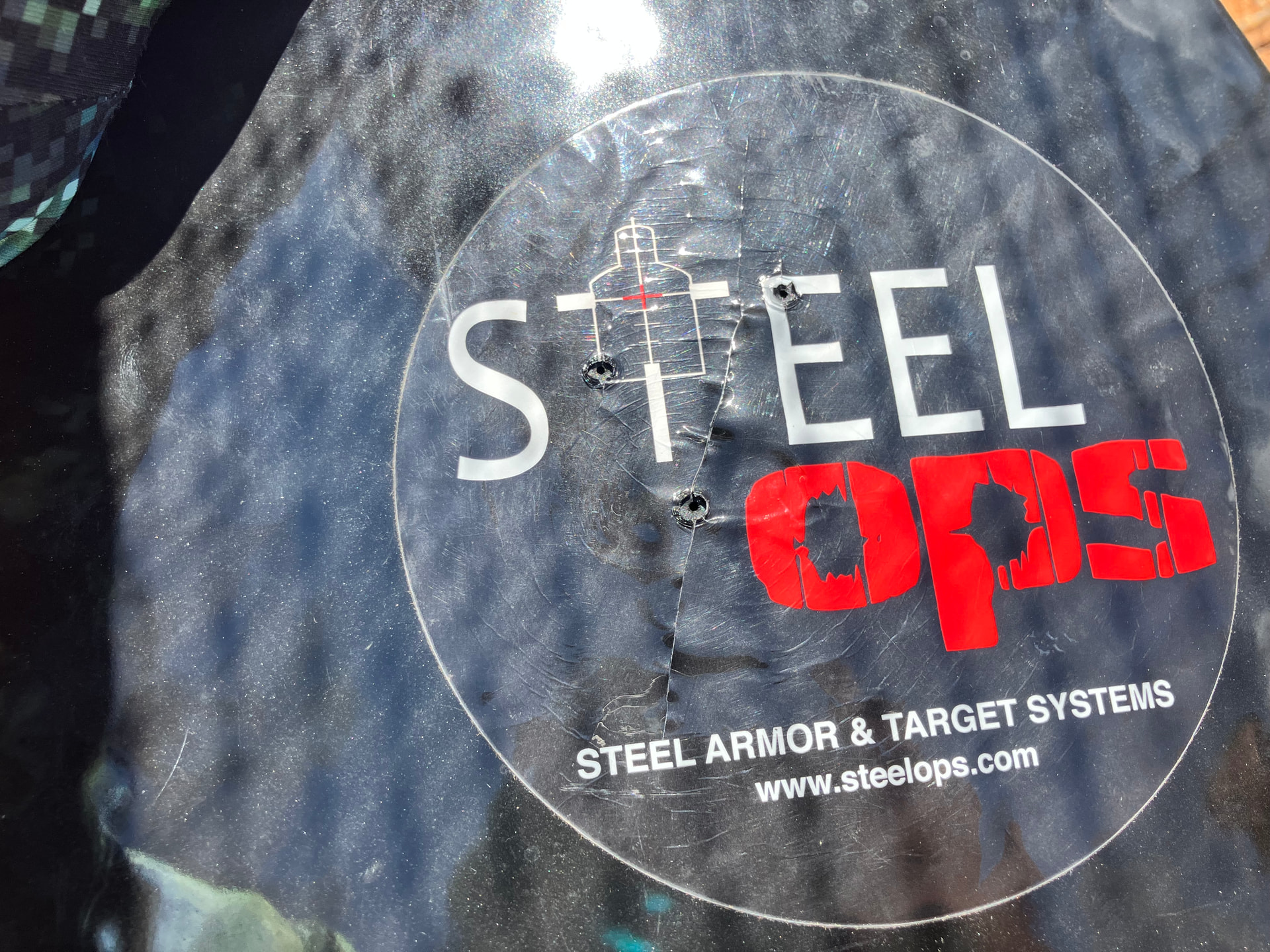

First three rounds: old IMI 77gr Razorcore

IMG_2800
IMG_28001920×1440 689 KB

IMG_2802
IMG_28021920×1440 495 KB

IMG_2801
IMG_28011920×1440 777 KB

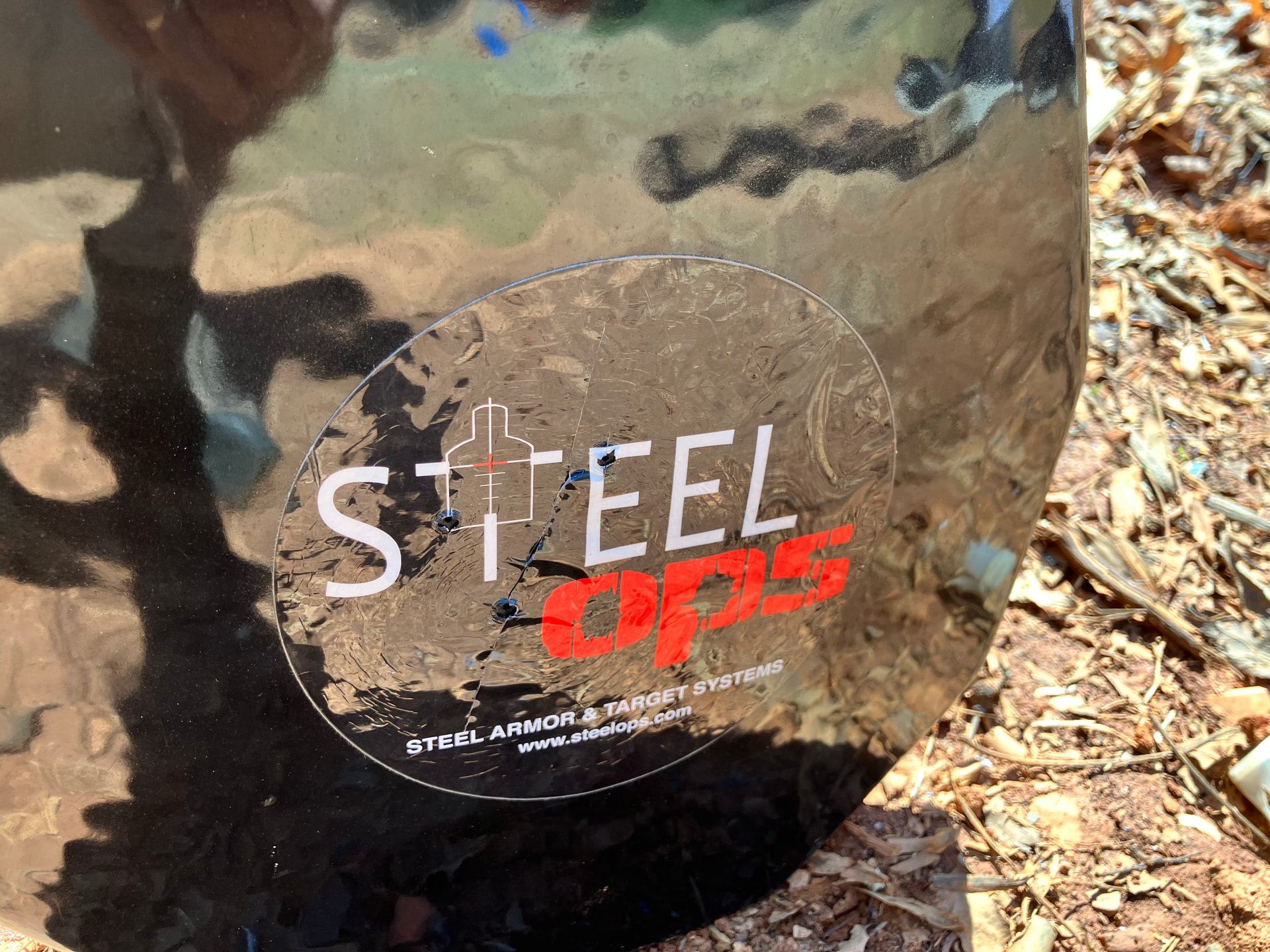

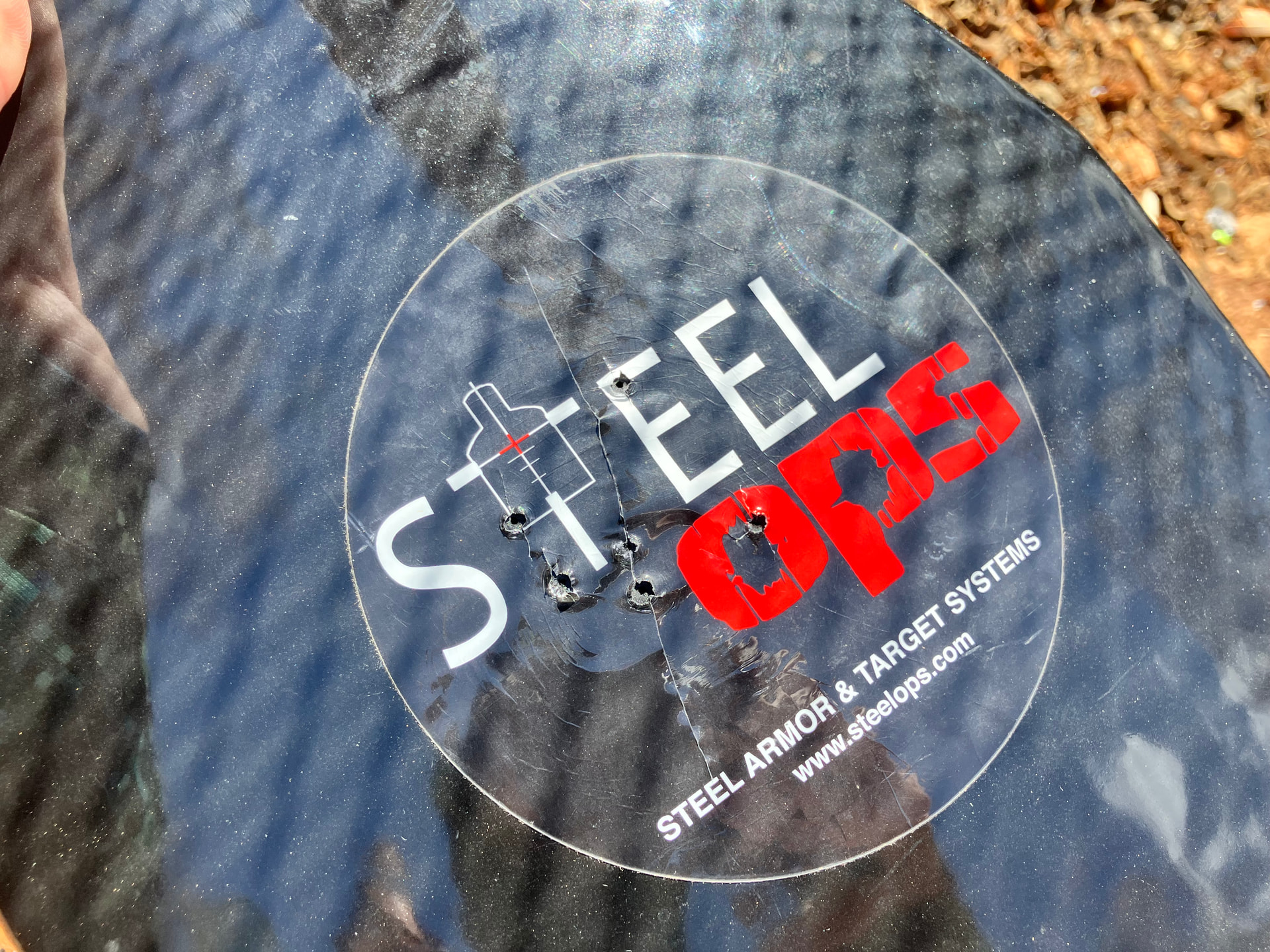

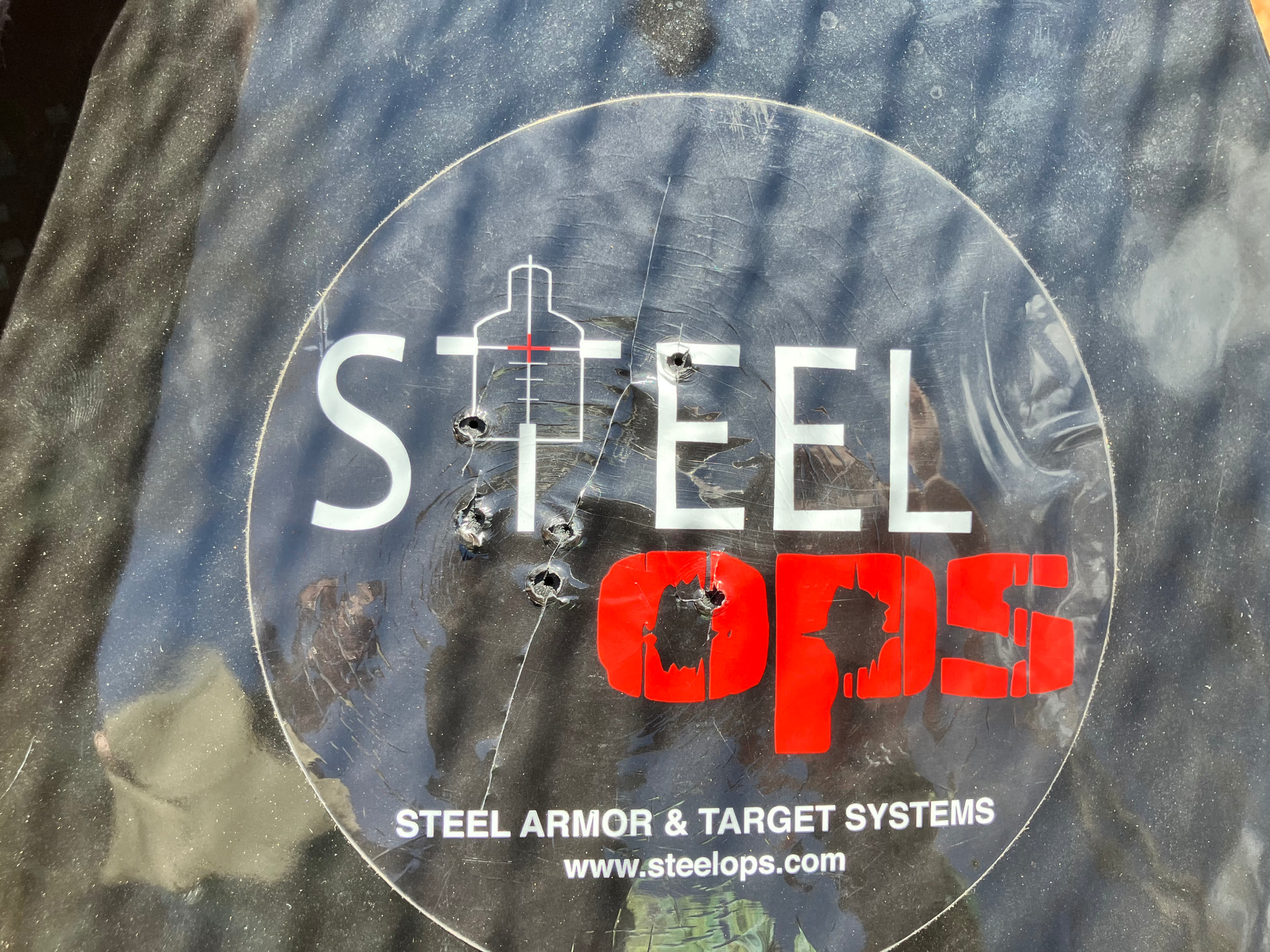

Second three rounds: XM193

IMG_2803
IMG_28031920×1440 1.39 MB

IMG_2807
IMG_28071920×1440 1.36 MB

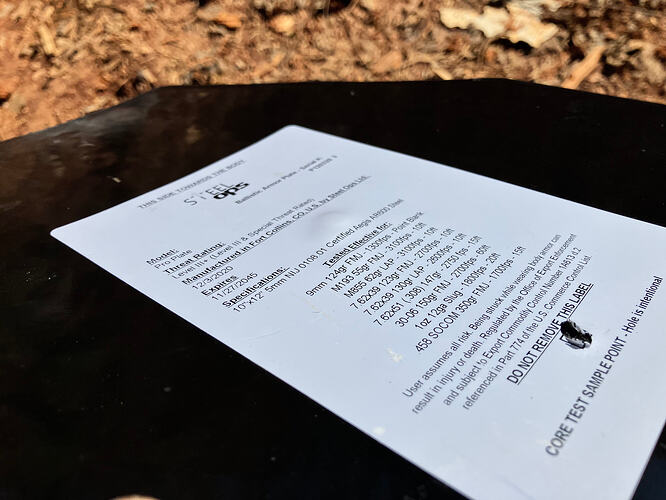

IMG_2806
IMG_28061920×1440 402 KB

IMG_2805
IMG_28051920×1440 760 KB

IMG_2804
IMG_28041920×1440 835 KB

No noticeable back face deformation after the 77gr. There is for the XM193, tried to capture in the image.

However…

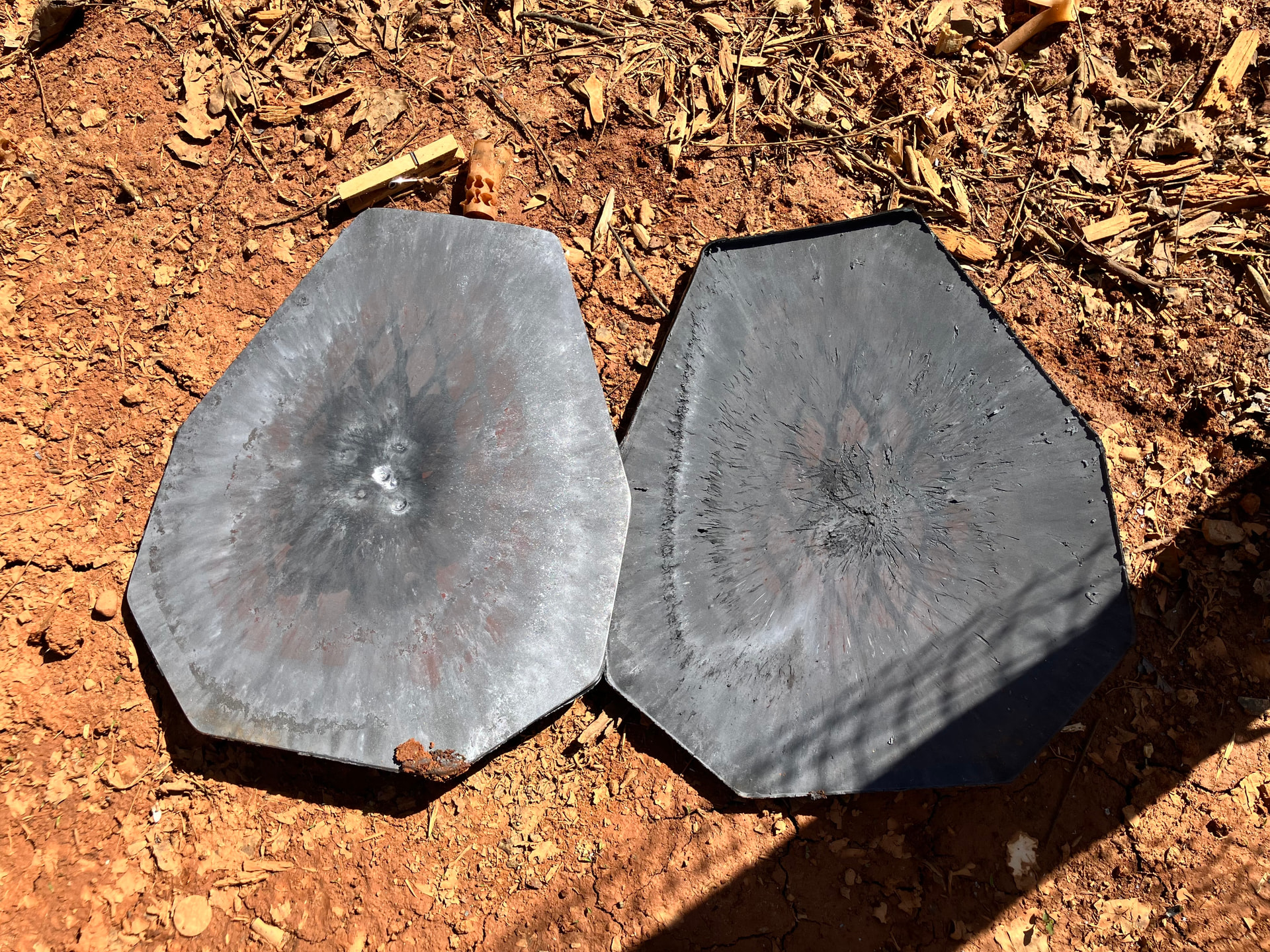

The XM193 broke free the outer coating. You can see the spall marks across the steel and inner surface of the coating. I can’t say for sure, but it appears that spall was released vertically after the coating was broken loose, which would be a bad day.

1 Like
2

Interesting. Never heard of this brand. Looks like it would surely work. XM193 is the nastiest common round against steel.

2 Likes
3

I’d like to see that steel after being shot with XM193 out of a 20” barrel. I bet that would make a nice little dent.

1 Like
4

Pretty much performed as expected. Good on you for sacrificing a plate for “research” though. I prefer ceramic, but there are pros v cons and everything is a compromise on some level.

Injury from spalling is always a possible risk with steel plates. All in all though, it’s still gotta be better than taking those hits straight to the vitals.

2 Likes
