A look inside my brand-new Smith 15-22

Y’all are right about empty posts concerning newly purchased guns. So here’s a post with content that might interest some viewers.

This gun is not a cosmetic phony. All controls work just as they would on an AR-15.

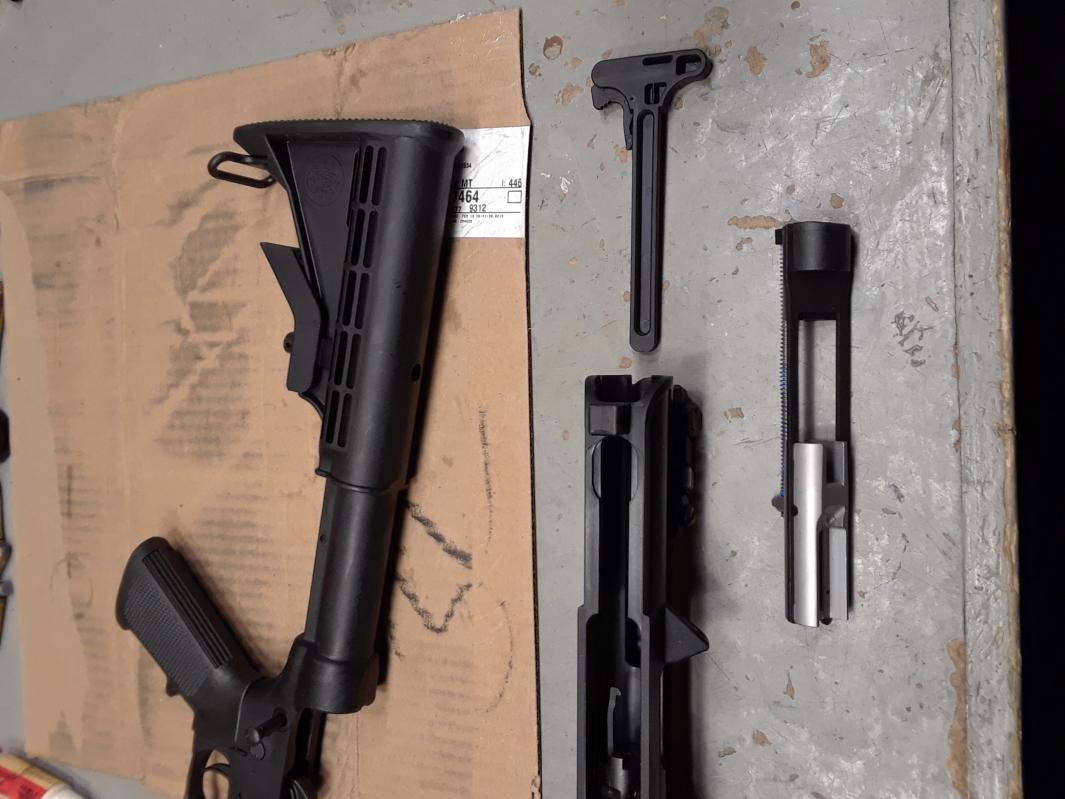

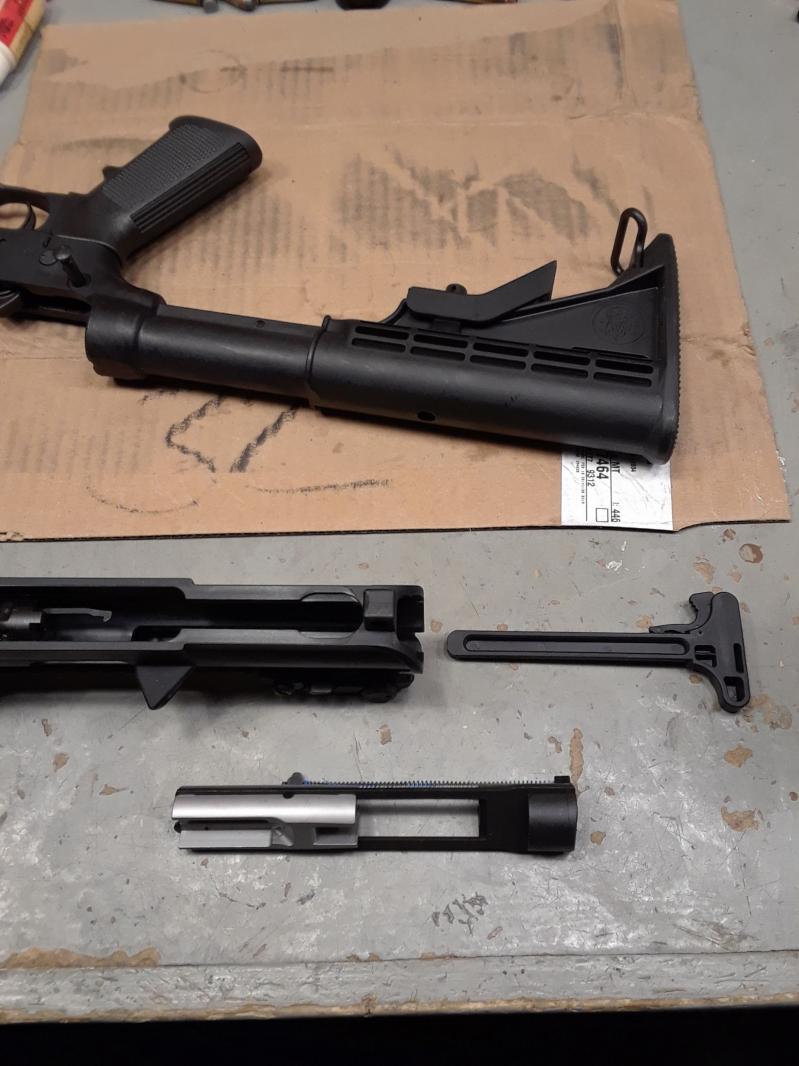

So I field stripped it. It comes apart just like a real AR. You remove the captured pins, and the (polymer) upper separates from the (polymer) lower.

The bolt carrier comes out along with the charging handle, just like the real thing.

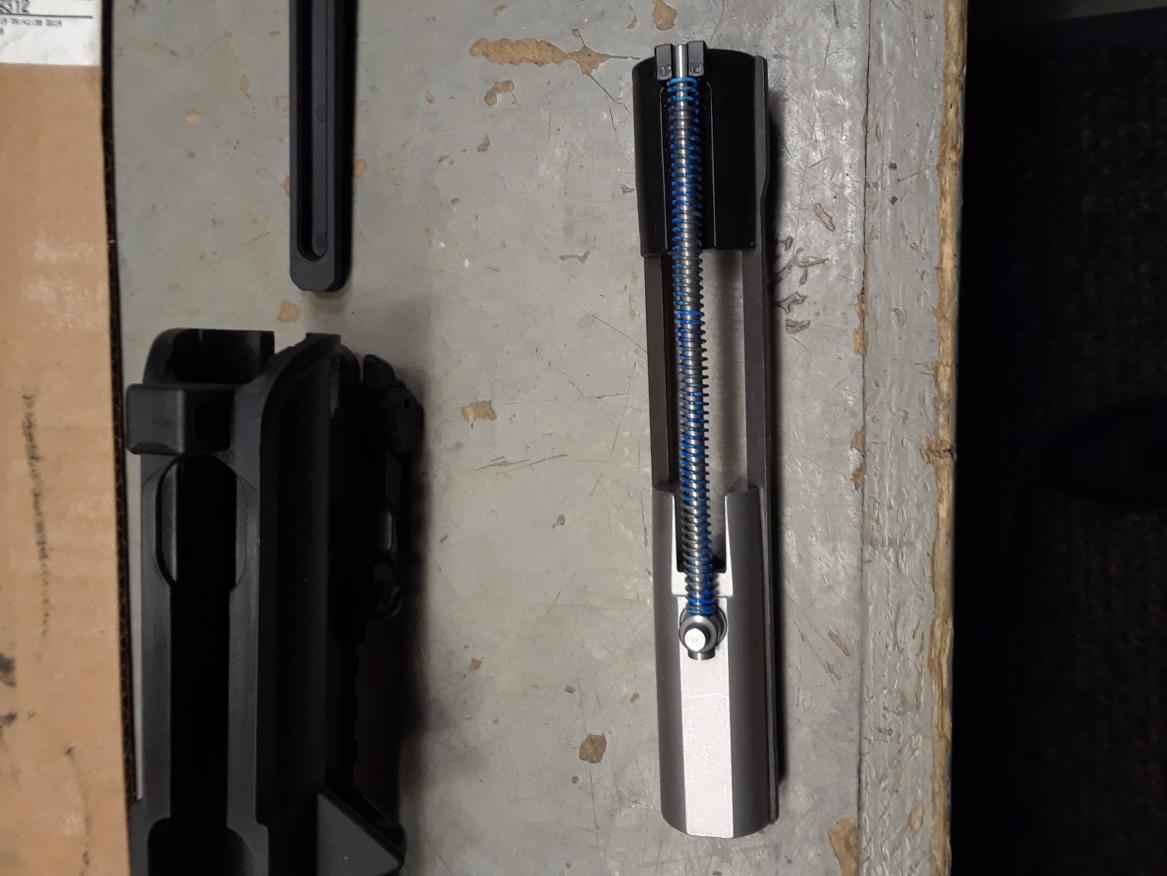

The bolt does not reciprocate into the buffer tube like an AR’s does; indeed there is no buffer tube in the stock. Instead, the bolt rides on two rails and compresses the return spring which is mounted on a guide rod.

The bore can be cleaned from the chamber end (unlike the 10/22).

The gun had been test-fired and came with a small quantity of sticky lube. I blasted all that off with brake cleaner and compressed air, and lubricated with CLP. A few patches through the bore completed initial cleaning.

The gun comes with Magpul flip-up sights fore and aft. I might get a rail mount A2 carry handle and front sight.

It is shipped with one 25 round magazine.

Does the upper have a metal pic rail for optics?

No the rail is plastic as well. I mounted a 2-7x Leupold on mine and it has stayed secure. I mean hardly any recoil to speak of do not surprising. A lot of plastic but I think well designed and executed. It is a little more accurate than my stock 10/22. Loads of fun!

Those are good pics of the disassembly. Very similar to an AR and super easy to clean. Fire control looks like you could replace with any AR trigger group. Mine has Magpul flip up sights. It has a QD sling point at the rear so perfect for a single point sling.

I’ve never had a problem with the 10-rd mags. But the 25-rd mags you have to be careful how the cartridges go in and stack or it will jam (cartridge gets stuck and dies not raise up enough to feed). When you look through the side cutouts you should see the cartridge nose alternate side to side. Seems to get misaligned if you pull the spring down too far when loading and toss a bunch of cartridges in there. If you pull the spring down just enough to ease tension but still have to push a cartridge down against the top when when loading then they stay aligned properly.

Also found on the 25-rd mags that some brands have a nose profile that can hang up on the feed ramp. Especially hollow points. CCC/Blazer/MiniMags seem utterly reliable. I think all of Aguila has fed fine as well. Blazer and all Aguila have been very accurate for a stock recreational shooter. CCI SV is about the most accuracy you can get out of it as is. I tried some select and Wolf Target but no better than CCI SV.

I have two of the first generation 15-22. They are a blast to shoot. The kids love them and the adjustable stocks and the light weight are great for kids to size the gun to them and shoot it… The trigger isn’t too bad. Tried running an RRa 2 stage and it would not reset the trigger. Switched back to a single and it runs fine. Great little blaster that is just an ammo hose. I run weaver 1x3 for a scope as it is a true 1x and cheap but well made. fun little gun and cheaper to do some training with.

Fun fact; while the 15-22 accepts standard AR triggers, the lower is thicker than the aluminum ones. Longer trigger pins for the Colt 901 will fit flush with the receiver surface and provide more rigidity for the hammer/trigger.

Also, the selector is wider than standard. Battle Arms Development makes an ambi selector core specifically for the 15-22.

Great info on triggers, thx.

BTW, one weak spot on the 15-22 is the ejector (sticking out of the receiver end of the barrel). If you bend it while cleaning around it, then it can cause various malfunctions. Just be careful working up in that area and it functions fine.

I agree the collapsible stock is a huge plus for family shooting, especially smaller kids. It can adjust to fit anyone.

The best I can do with multiple 10-Shot groups over several range sessions at 50 yds is 1.0” ES with CCI SV and Federal GM (though much more expensive); 1.3” avg with Blazer and any Aquila SV or HV; 1.4” with Mini-Mags and American Eagle HV. Most Winchester is closer to 2” for me and anything Remington is minute of barn door. For me this is much better than I expected from a sport semi .22LR and plenty accurate. Blazer is incredibly consistent, low price and totally reliable and accurate. Phenomenal ammo for the price. Aguila right now is selling a little cheaper than even Blazer, is same accuracy and reliability so that is what I am buying mostly.

I’ve got a couple of them, both good guns. I only wish they were available sooner, would have been good for my girls (both now in their 30’s) to practice with when they were younger. Oh well, the grandkids will appreciate them.

Love the light weight and no recoil of this rifle. It’s perfect for youngsters working up from bolt action single shots, and is also pretty good as a dedicated AR trainer. I set up mine just like its AR big brother, including the BAD ambidextrous safety, red dot, & sling. One caution is that this rifle tends to be a little pickier regarding ammo. I’d echo the suggestions to use CCI SV or the CCI AR Tactical rounds. Also, there are reports of problems with third party magazines. I’ve stuck with OEM mags that have worked reasonably ok as long as you load them slowly. Don’t tell anyone this, but frankly I enjoy shooting this rifle more than any of my 5.56 ARs!

M&P 15-22s can be a lot of fun.

They’ve also been banned from Appleseed shoots since 2016 because of issues with firing out of battery, firing on trigger reset, and running away. The decision was based on issues with multiple guns at different events hosted by clubs around the country:

https://bearingarms.com/bob-o/2016/09/15/breaking-mp-1522s-banned-appleseed-events-battery-run-away-discharges/

The notice says “temporary ban” but the ban is still in effect as of today per the Project Appleseed website.

To: All Appleseed Instructors

[u]Subject: TEMPORARY BAN ON SMITH & WESSON M&P 15/22 USE AT APPLESEED

EFFECTIVE IMMEDIATELY, THE USE OF SMITH AND WESSON M&P 15/22’S AT AN APPLESEED IS HEREBY BANNED UNTIL SMITH & WESSON FORMALLY INVESTIGATES THE PROBLEM AND ISSUES AN OFFICIAL CORRECTIVE ACTION. THE AOC WILL NOTIFY THE CADRE WHEN THIS BAN IS LIFTED.[/u]

The AOC has received a rash of reports regarding safety issues with the Smith & Wesson M&P 15/22, including a shooter getting injured as a result of an out-of-battery discharge (see reports below).

As responsible Instructors, we have a duty to maintain safety at our events. If we know a rifle to be potentially unsafe, we shouldn’t allow it on the line at all.

At this time the least risk course of action would be to exclude the Smith & Wesson M&P 15/22 from future events until Smith & Wesson formally investigates the problem and issues an official corrective action.

REPORTS TO BE AWARE OF:

Bowie, MD: A shooter (RHS) firing a M&P 15/22 with Remington 22 Thunderbolt Ammo had an out of battery discharge. A Metal Fragment hit the arm of a shooter next to her (LHS) in her right arm. She, did not realize that she had been hit with fragments at first and continued to fire until blood begin to pool (time est. 11:10am) feeling only a warm sting. Instructors rendered first aid applying a compression type bandage to stop the bleeding. Shoot boss suggested that she go to local hospital or emergency clinic. She was able to drive herself to the hospital. They took x-rays of the area and found a fragment deep in her arm. Hospital suggested that she see an Orthopedic surgeon or her Doctor on Monday to have the object removed but surgery should not be required.

Casper, WY: This past weekend we had a student show up with a 15/22. She had been using it pretty regular, since she had also attended our recent boot camp. After about 8 sets of squares, she began to notice the malfunction. Upon careful observation, it was noticed that as she reset the sear the rifle would discharge. We called cease fire and immediately removed this rifle from the line, and replaced it with a loaner.

Once off line, it was field stripped and upon inspection, found that not only was it firing at reset, but also when the safety was engaged. Further inspection found that the trigger pin and the hammer pin were both loose. They both had moved about 1/16th of an inch to the right. Just enough to be loose on the left side of the receiver. The pins were gently hammered back in and function checks performed. After about 3 sets, the hammer pin slid out again.

The rifle was reassembled and tagged out, student was told that 1) the rifle needed to be seen by her gunsmith; or 2) (my recommendation) sent back to the manufacturer for repair/replacement.

Michigan Senior Instructor: The SI wanted to shoot an AQT with his 15/22, but he needed to verify the zero. Another instructor volunteered to take the rifle over to another range, put it on a bench, and confirm zero. While shooting the first string, after pulling the trigger, the extractor shot out the ejection port along with the case and the extractor spring. The case was retrieved and it was observed to be split down the side, indicating that the rifle fired out of battery. Fortunately, the instructor was alone on the range, and no one was injured. The rifle was sent back to S&W, and it was repaired and returned. A copy of one page of the manual was enclosed, highlighting the need to keep the rifle clean and only use certain types of ammunition, insinuating that the problem was operator error, not a design flaw. The Senior Instructor sold the rifle shortly thereafter.

Michigan Instructor: “Back before I was more familiar with this model, we had a malfunction of the Extractor during an event – it simply fell apart during a course of fire. I took it to Williams and they said it needed to go back to S&W. To save time I just bought a new extractor, springs and dowel pins and replaced them myself. Tested it and it worked fine, that’s until it malfunctioned again after several hundred rounds down range.

As the old saying goes “two is one and one is none” – I had purchased several extractors, springs and dowel pins – replaced it a second time and it worked fine all up until I had a “Run-Away…” Luckily I had the muzzle pointed down range as it spit out the balance of 30 rounds down range without the need to have a finger on the trigger….
I contacted S&W and they sent me a repair tag and shipped it back to them. Upon its return I noticed that they replaced the hammer, sear and all the springs were replaced with “Blue” springs. The rifle performed well the after that but I never brought it back to an Appleseed. It now sits in the vault as an expensive club.”

Montpelier, VA: I’ve witnessed out-of-battery firing and squib from M&P 15/22’s twice but never from a 10/22.

They can be fun, but I would probably think twice about giving one to a kid. I replaced mine with a CMMG dedicated 22 upper and a Bonnie Packer “Better Mag” adapter that allows the use of the awesome 15-22 mags.

Edit: Also, shouldn’t this thread be in the “Beyond 5.56/223” forum?

Radian recently released a CH and safety for them as well.

Sent from my iPhone using Tapatalk

I have the same setup. Allows BHO also. Very fun to shoot.

Mine’s been great. Only change I made were a Hiperfire 24C and Kaw Valley linear comp. It’s primary ammunition is CCI AR Tactical and a little bit of the 21gr CCI Copper-22. I personally find the appleseed deal to be a bit “curious” based on time span and number of reported incidents. Wouldn’t hesitate letting a kid have it under the same conditions and restrictions as any other firearm.

Ncstar makes rails for the this rifle, complete with barrel nut wrench.

It’s a great trainer that I used for night shooting in the yard.

Yeah, I suppose there must have been actual incidents for them to make that policy. But mine has been very reliable once I figured out the correct way to load the 25-rd mags. Some range sessions we shot 400 rds fairly rapid without a hiccup. I bought enough mags to be able to shoot quite a while without having to load mags (do that the day before). When I see many, many people over the years at the range shoot the MP 15-22 without those issues yet Appleseed reports them, I suspect a few guys were filing sears or some other shade tree gunsmithing to “tune” their rifle for competition. Maybe not, but I would lay odds on that being the root cause.

Too bad either way since the 15-22 is readily available to lots of new and old shooters, acceptably accurate, ready to accept sling and sights/optics if your choice, stock that adjusts to different size shooters, and reasonably replicates the platform currently used by our servicemen.

This is mine. Usually wearing its Coastal Hornet suppressor but its on the 10/22 right now.

Sent from my SM-G892A using Tapatalk

A few years ago Grant posted his suppressed SBR 15-22 and I’ve wanted one ever since. Would make a great setup to deal with my groundhog issues.

I had the barrel chopped to 4.5 inches and run it suppressed all the time. It’s a great little shooter and i thought my daughter how to shoot with it.

Thank you for posting this. While I would never shoot at the same time as a young shooter (they really must be supervised at all times) this is still good to know.

There were issues within the first year of being released which was quite a while ago. I don’t remember what they were, but I wonder if that’s what it’s referring to. I’ve had mine for many years and several thousand rounds and never heard of any issues aside from those that I just mentioned.

Sent from my iPhone using Tapatalk

Shouldn’t this be in the “AR Pistols & Pistol Caliber ARs” forum?
